รายละเอียดสินค้า:
|
| วัสดุ: | เพชรคริสตัลไลน์ (PCD) | ข้อมูลจำเพาะ: | แบบซีซี |
|---|---|---|---|
| แอปพลิเคชัน: | เหมาะสำหรับความต้องการพื้นผิวสูง | เครื่องจักรกล: | จบ |
| บริการ: | โอเอ็มเอ็ม/โออีเอ็ม | กำหนดเอง: | สนับสนุน |
| เน้น: | เม็ดมีดกลึง PCD ที่ทนต่อการสึกหรอสูง,เม็ดมีดกลึง CCGW PCD,เม็ดมีด CCGW PCD สำหรับอลูมิเนียม |
||

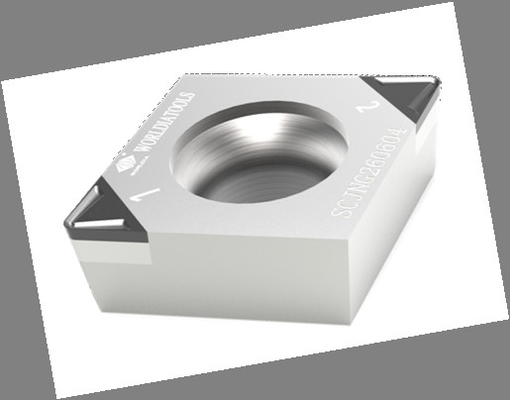

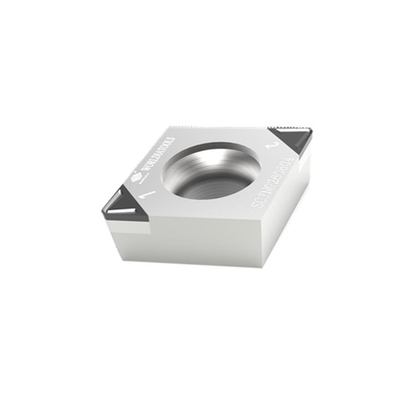

เครื่องมือ PCD เม็ดมีดกลึง PCD หักเศษ 80° สำหรับการตัดเฉือนวัสดุอโลหะ
| ระดับ | เข้าใจแล้ว | ด | ส | α | อีกครั้ง | ลา | ||||||
| หมายเลขแค็ตตาล็อก ISO | หมายเลขแค็ตตาล็อก ANSI | รูปร่างปลาย |
พี.ดี 01E |
พี.ดี 10E |
พี.ดี 32E |
ประวัติย่อ ดี.ดี |
มม | มม | มม | ระดับ | มม | มม |
| CCGW060202-1N P00P07 | CCGW2(1.5)(0.5)-1N P00P07 | CBST25S | ● | ● | ● | 6.35 น | 2.8 | 2.38 | 0° | 2 | 2.5 | |
| CCGT060202-1N P05P07 | CCGT2(1.5)(0.5)-1N P05P07 | CBST25S | ● | ● | ● | 6.35 น | 2.8 | 2.38 | 5° | 2 | 2.5 | |
| CCGT060202-1N P10P07 | CCGT2(1.5)(0.5)-1N P10P07 | CBST25S | ● | ● | ● | 6.35 น | 2.8 | 2.38 | 10° | 2 | 2.5 | |
| CCGW060204-1N P00P07 | CCGW2(1.5)1-1N P00P07 | CBST25S | ● | ● | ● | 6.35 น | 2.8 | 2.38 | 0° | 4 | 2.5 | |
| CCGT060204-1N P05P07 | CCGT2(1.5)1-1N P05P07 | CBST25S | ● | ● | ● | 6.35 น | 2.8 | 2.38 | 5° | 4 | 2.5 | |
| CCGT060204-1N P10P07 | CCGT2(1.5)1-1N P10P07 | CBST25S | ● | ● | ● | 6.35 น | 2.8 | 2.38 | 10° | 4 | 2.5 | |
| CCGW060202-1N P00P07 | CCGW2(1.5)(0.5)-1N P00P07 | SLST25S | ● | 6.35 น | 2.8 | 2.38 | 0° | 2 | 2.5 | |||
| CCGT060202-1N P05P07 | CCGT2(1.5)(0.5)-1N P05P07 | SLST25S | ● | 6.35 น | 2.8 | 2.38 | 5° | 2 | 2.5 | |||
| CCGT060202-1N P10P07 | CCGT2(1.5)(0.5)-1N P10P07 | SLST25S | ● | 6.35 น | 2.8 | 2.38 | 10° | 2 | 2.5 | |||
| CCGW060204-1N P00P07 | CCGW2(1.5)1-1N P00P07 | SLST25S | ● | 6.35 น | 2.8 | 2.38 | 0° | 4 | 2.5 | |||
| CCGT060204-1N P05P07 | CCGT2(1.5)1-1N P05P07 | SLST25S | ● | 6.35 น | 2.8 | 2.38 | 5° | 4 | 2.5 | |||
| CCGT060204-1N P10P07 | CCGT2(1.5)1-1N P10P07 | SLST25S | ● | 6.35 น | 2.8 | 2.38 | 10° | 4 | 2.5 | |||
| CCGW060202-2N P00P07 | CCGW2(1.5)(0.5)-2N P00P07 | CBST25S | ● | ● | ● | 6.35 น | 2.8 | 2.38 | 0° | 2 | 2.5 | |
| CCGT060202-2N P05P07 | CCGT2(1.5)(0.5)-2N P05P07 | CBST25S | ● | ● | ● | 6.35 น | 2.8 | 2.38 | 5° | 2 | 2.5 | |
| CCGT060202-2N P10P07 | CCGT2(1.5)(0.5)-2N P10P07 | CBST25S | ● | ● | ● | 6.35 น | 2.8 | 2.38 | 10° | 2 | 2.5 | |
| CCGW060204-2N P00P07 | CCGW2(1.5)1-2N P00P07 | CBST25S | ● | ● | ● | 6.35 น | 2.8 | 2.38 | 0° | 4 | 2.5 | |
| CCGT060204-2N P05P07 | CCGT2(1.5)1-2N P05P07 | CBST25S | ● | ● | ● | 6.35 น | 2.8 | 2.38 | 5° | 4 | 2.5 | |
| CCGT060204-2N P10P07 | CCGT2(1.5)1-2N P10P07 | CBST25S | ● | ● | ● | 6.35 น | 2.8 | 2.38 | 10° | 4 | 2.5 | |
| CCGW09T302-1N P00P07 | CCGW3(2.5)(0.5)-1N P00P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 0° | 2 | 2.5 | |
| CCGT09T302-1N P05P07 | CCGT3(2.5)(0.5)-1N P05P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 5° | 2 | 2.5 | |
| CCGT09T302-1N P10P07 | CCGT3(2.5)(0.5)-1N P10P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 10° | 2 | 2.5 | |
| CCGW09T304-1N P00P07 | CCGW3(2.5)1-1N P00P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 0° | 4 | 2.5 | |
| CCGT09T304-1N P05P07 | CCGT3(2.5)1-1N P05P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 5° | 4 | 2.5 | |
| CCGT09T304-1N P10P07 | CCGT3(2.5)1-1N P10P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 10° | 4 | 2.5 | |
| CCGW09T308-1N P00P07 | CCGW3(2.5)2-1N P00P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 0° | 8 | 2.5 | |
| CCGT09T308-1N P05P07 | CCGT3(2.5)2-1N P05P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 5° | 8 | 2.5 | |
| CCGT09T308-1N P10P07 | CCGT3(2.5)2-1N P10P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 10° | 8 | 2.5 | |
| CCGW09T302-1N P00P07 | CCGW3(2.5)(0.5)-1N P00P07 | SLST25S | ● | 9.525 | 4.4 | 3.97 | 0° | 2 | 2.5 | |||
| CCGT09T302-1N P05P07 | CCGT3(2.5)(0.5)-1N P05P07 | SLST25S | ● | 9.525 | 4.4 | 3.97 | 5° | 2 | 2.5 | |||
| CCGT09T302-1N P10P07 | CCGT3(2.5)(0.5)-1N P10P07 | SLST25S | ● | 9.525 | 4.4 | 3.97 | 10° | 2 | 2.5 | |||
| CCGW09T304-1N P00P07 | CCGW3(2.5)1-1N P00P07 | SLST25S | ● | 9.525 | 4.4 | 3.97 | 0° | 4 | 2.5 | |||
| CCGT09T304-1N P05P07 | CCGT3(2.5)1-1N P05P07 | SLST25S | ● | 9.525 | 4.4 | 3.97 | 5° | 4 | 2.5 | |||
| CCGT09T304-1N P10P07 | CCGT3(2.5)1-1N P10P07 | SLST25S | ● | 9.525 | 4.4 | 3.97 | 10° | 4 | 2.5 | |||
| CCGW09T308-1N P00P07 | CCGW3(2.5)2-1N P00P07 | SLST25S | ● | 9.525 | 4.4 | 3.97 | 0° | 8 | 2.5 | |||
| CCGT09T308-1N P05P07 | CCGT3(2.5)2-1N P05P07 | SLST25S | ● | 9.525 | 4.4 | 3.97 | 5° | 8 | 2.5 | |||
| CCGT09T308-1N P10P07 | CCGT3(2.5)2-1N P10P07 | SLST25S | ● | 9.525 | 4.4 | 3.97 | 10° | 8 | 2.5 | |||
| CCGW09T302-2N P00P07 | CCGW3(2.5)(0.5)-2N P00P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 0° | 2 | 2.5 | |
| CCGT09T302-2N P05P07 | CCGT3(2.5)(0.5)-2N P05P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 5° | 2 | 2.5 | |
| CCGT09T302-2N P10P07 | CCGT3(2.5)(0.5)-2N P10P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 10° | 2 | 2.5 | |
| CCGW09T304-2N P00P07 | CCGW3(2.5)1-2N P00P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 0° | 4 | 2.5 | |
| CCGT09T304-2N P05P07 | CCGT3(2.5)1-2N P05P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 5° | 4 | 2.5 | |
| CCGT09T304-2N P10P07 | CCGT3(2.5)1-2N P10P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 10° | 4 | 2.5 | |
| CCGW09T308-2N P00P07 | CCGW3(2.5)2-2N P00P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 0° | 8 | 2.5 | |
| CCGW09T308-2N P05P07 | CCGT3(2.5)2-2N P05P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 5° | 8 | 2.5 | |
| CCGW09T308-2N P10P07 | CCGT3(2.5)2-2N P10P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 10° | 8 | 2.5 | |
| CCGW120402-1N P00P07 | CCGW43(0.5)-1N P00P07 | CBST25S | ● | ● | ● | 12.7 | 5.5 | 4.76 | 0° | 2 | 2.5 | |
| CCGT120402-1N P05P07 | CCGT43(0.5)-1N P05P07 | CBST25S | ● | ● | ● | 12.7 | 5.5 | 4.76 | 5° | 2 | 2.5 | |
| CCGT120402-1N P10P07 | CCGT43(0.5)-1N P10P07 | CBST25S | ● | ● | ● | 12.7 | 5.5 | 4.76 | 10° | 2 | 2.5 | |
| CCGW120404-1N P00P07 | CCGW431-1N P00P07 | CBST25S | ● | ● | ● | 12.7 | 5.5 | 4.76 | 0° | 4 | 2.5 | |
| CCGT120404-1N P05P07 | CCGT431-1N P05P07 | CBST25S | ● | ● | ● | 12.7 | 5.5 | 4.76 | 5° | 4 | 2.5 | |
| CCGT120404-1N P10P07 | CCGT431-1N P10P07 | CBST25S | ● | ● | ● | 12.7 | 5.5 | 4.76 | 10° | 4 | 2.5 | |
| CCGW120408-1N P00P07 | CCGW432-1N P00P07 | CBST25S | ● | ● | ● | 12.7 | 5.5 | 4.76 | 0° | 8 | 2.5 | |
| CCGT120408-1N P05P07 | CCGT432-1N P05P07 | CBST25S | ● | ● | ● | 12.7 | 5.5 | 4.76 | 5° | 8 | 2.5 | |
| CCGT120408-1N P10P07 | CCGT432-1N P10P07 | CBST25S | ● | ● | ● | 12.7 | 5.5 | 4.76 | 10° | 8 | 2.5 | |
| CCGW120402-1N P00P07 | CCGW43(0.5)-1N P00P07 | SLST25S | ● | 12.7 | 5.5 | 4.76 | 0° | 2 | 2.5 | |||
| CCGT120402-1N P05P07 | CCGT43(0.5)-1N P05P07 | SLST25S | ● | 12.7 | 5.5 | 4.76 | 5° | 2 | 2.5 | |||
| CCGT120402-1N P10P07 | CCGT43(0.5)-1N P10P07 | SLST25S | ● | 12.7 | 5.5 | 4.76 | 10° | 2 | 2.5 | |||
| CCGW120404-1N P00P07 | CCGW431-1N P00P07 | SLST25S | ● | 12.7 | 5.5 | 4.76 | 0° | 4 | 2.5 | |||
| CCGT120404-1N P05P07 | CCGT431-1N P05P07 | SLST25S | ● | 12.7 | 5.5 | 4.76 | 5° | 4 | 2.5 | |||
| CCGT120404-1N P10P07 | CCGT431-1N P10P07 | SLST25S | ● | 12.7 | 5.5 | 4.76 | 10° | 4 | 2.5 | |||
| CCGW120408-1N P00P07 | CCGW432-1N P00P07 | SLST25S | ● | 12.7 | 5.5 | 4.76 | 0° | 8 | 2.5 | |||
| CCGT120408-1N P05P07 | CCGT432-1N P05P07 | SLST25S | ● | 12.7 | 5.5 | 4.76 | 5° | 8 | 2.5 | |||
| CCGT120408-1N P10P07 | CCGT432-1N P10P07 | SLST25S | ● | 12.7 | 5.5 | 4.76 | 10° | 8 | 2.5 | |||
| CCGW120402-2N P00P07 | CCGW43(0.5)-2N P00P07 | CBST25S | ● | ● | ● | 12.7 | 5.5 | 4.76 | 0° | 2 | 2.5 | |
| CCGT120402-2N P05P07 | CCGT43(0.5)-2N P05P07 | CBST25S | ● | ● | ● | 12.7 | 5.5 | 4.76 | 5° | 2 | 2.5 | |
| CCGT120402-2N P10P07 | CCGT43(0.5)-2N P10P07 | CBST25S | ● | ● | ● | 12.7 | 5.5 | 4.76 | 10° | 2 | 2.5 | |
| CCGW120404-2N P00P07 | CCGW431-2N P00P07 | CBST25S | ● | ● | ● | 12.7 | 5.5 | 4.76 | 0° | 4 | 2.5 | |
| CCGT120404-2N P05P07 | CCGT431-2N P05P07 | CBST25S | ● | ● | ● | 12.7 | 5.5 | 4.76 | 5° | 4 | 2.5 | |
| CCGT120404-2N P10P07 | CCGT431-2N P10P07 | CBST25S | ● | ● | ● | 12.7 | 5.5 | 4.76 | 10° | 4 | 2.5 | |
| CCGW120408-2N P00P07 | CCGW432-2N P00P07 | CBST25S | ● | ● | ● | 12.7 | 5.5 | 4.76 | 0° | 8 | 2.5 | |
| CCGT120408-2N P05P07 | CCGT432-2N P05P07 | CBST25S | ● | ● | ● | 12.7 | 5.5 | 4.76 | 5° | 8 | 2.5 | |
| CCGT120408-2N P10P07 | CCGT432-2N P10P07 | CBST25S | ● | ● | ● | 12.7 | 5.5 | 4.76 | 10° | 8 | 2.5 |
เม็ดมีดร่องคายเศษ WORLDIA PCD เหมาะสำหรับอลูมิเนียมอัลลอยด์,โลหะผสมทองแดง, โลหะผสมแมกนีเซียม,
วัสดุที่ไม่ใช่เหล็กทั้งหมด คอมโพสิต พลาสติกเสริมแรง และวัสดุที่มีตัวประสานที่มีฤทธิ์กัดกร่อน
กำจัดเศษรังนกเมื่อกลึงหรือคว้าน ปรับให้เหมาะกับการเก็บผิวละเอียดหรือการตัดเฉือนทั่วไป
หน้าที่และคุณสมบัติของเม็ดมีดร่องคายเศษ PCD
1. กำจัดเศษรังนกเมื่อกลึงอะลูมิเนียมหรือวัสดุชิ้นงานอื่นๆ
2. การออกแบบกระเป๋าทำลายชิป 3 มิติที่ไม่เหมือนใครรับประกันความต้านทานการบิ่นที่ยอดเยี่ยมและประสิทธิภาพการทำงานที่ดีขึ้นอย่างมาก
